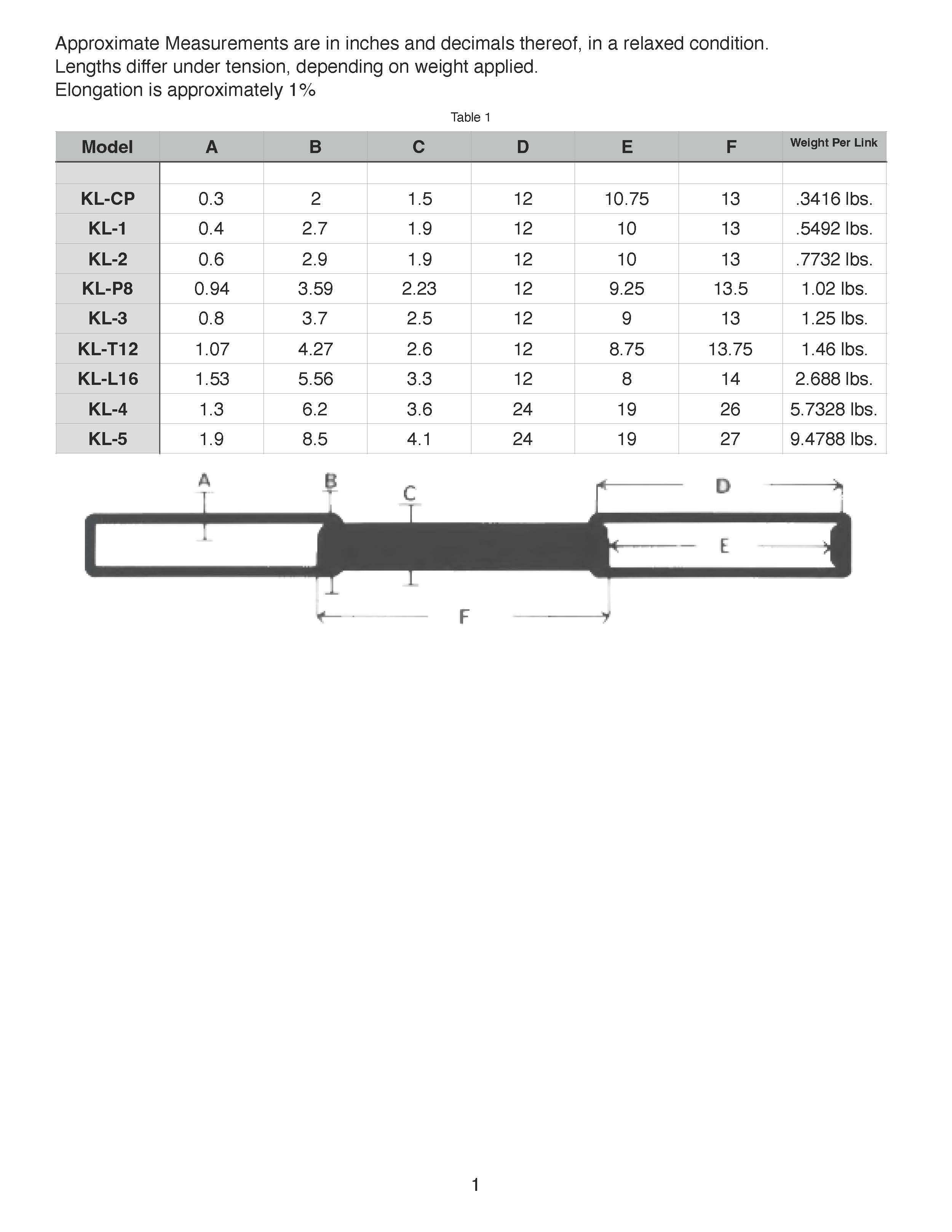

Measurements are in inches and fractions thereof.
Based on KLCP, KL1, KL2, KL3 at 1 foot Links

and KL4 & KL5 at 2 foot Links

    MODEL       A       B       C       D       E       F

    Weight per
         Link in              pounds

Weight per
6" Link in
pounds

    KLCP   .3   2   1.5   12  10.75   13   .3416 lbs.
.2244 lbs.
    KL1   .4   2.7   1.9   12  10   13   .5492 lbs.
.3328 lbs.
    KL2   .6   2.9   1.9   12  10   13   .7732 lbs.
.496 lbs.
    KL3   .8   3.7   2.5   12   8.25   13 1.3552 lbs.
NA
    KL4 1.3   6.2   3.6   24  19   26 5.7328 lbs.
NA
    KL5 1.9   8.5   4.1   24  19   27 9.4788 lbs.
NA
