5 to 1 Design factor

Never use slings beyond the W.L.L. Working Load Limit
!! Please Read Safety Warning on Condition Below !!

K-LINKS
Multiple Links

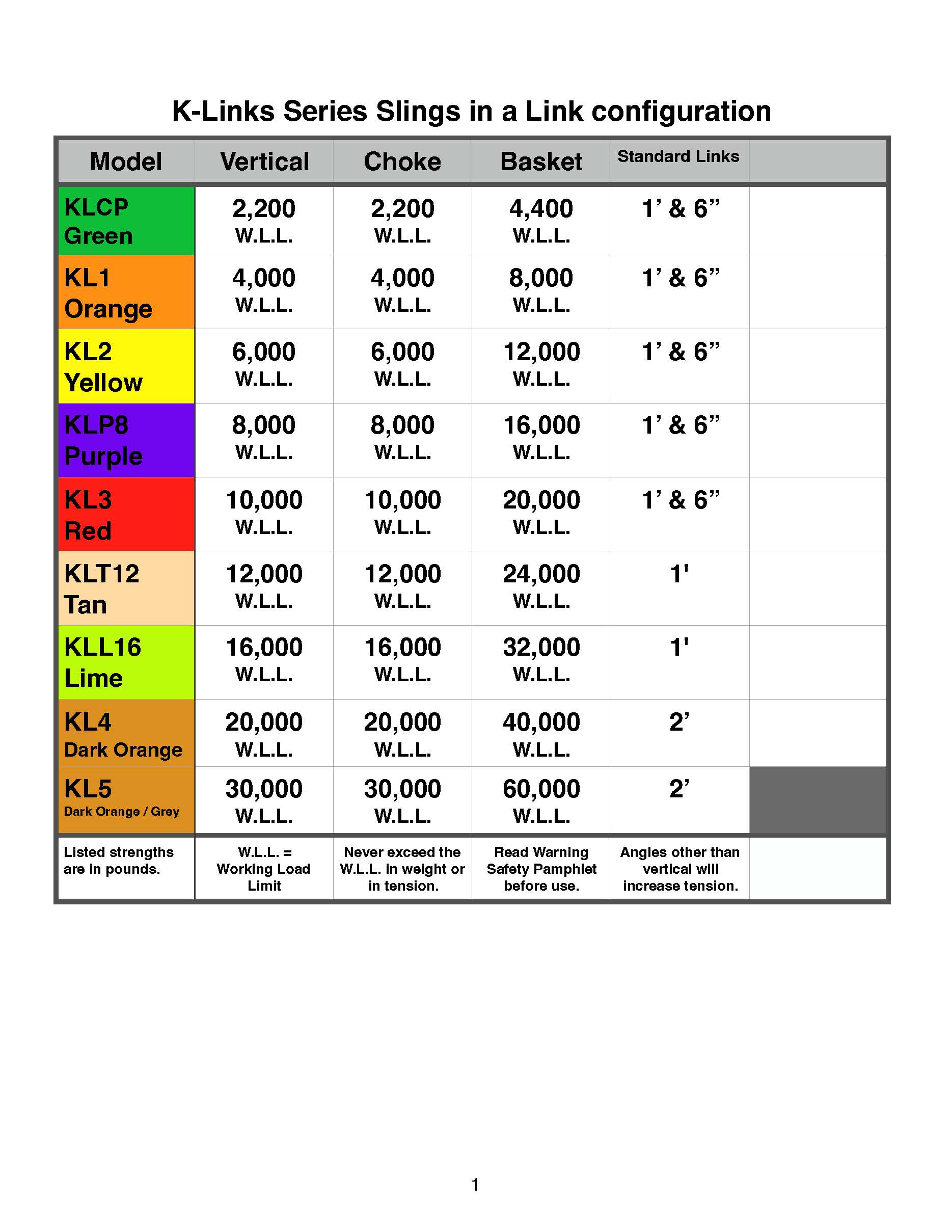

  ( W.L.L. ) Working Load Limits are in Pounds        Standard  length of each Link
      Color    Model   Verticle     Choke   Basket
Drab Olive   KLCP   2,200 Lbs.   2,200 Lbs.   4,400 Lbs.

      1 foot  or   6 inch
 Sling can be in a combination  of each.

ORANGE or Black   KL1   4,000 Lbs.   4,000 Lbs.   8,000 Lbs.

      1 foot  or   6 inch
 Sling can be in a combination  of each.

YELLOW or Black   KL2   6,000 Lbs.   6,000 Lbs.  12,000 Lbs.       1 foot  or  6 inch
 Sling can be in a combination  of each.
RED   KL3  10,000 Lbs.  10,000 Lbs.  20,000 Lbs.       1 foot
BLUE   KL4  20,000 Lbs.  20,000 Lbs.  40,000 Lbs.       2 foot
RED & BLUE   KL5  30,000 Lbs.  30,000 Lbs.  60,000 Lbs.       2 foot


The KLCP, KL1, and KL2 K-Link Slings can be in lengths of 1 foot ingrements or 6 inch ingrements or a combination of 1 foot
and 6 inch. They can be placed in any order you wish with in the total length of a sling.

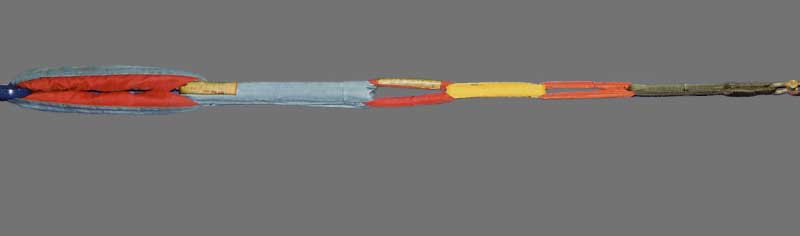

Top picture from left to right : KL5 = 2 ft.Link , KL4 = 2 ft.Link , KL3 = 1 ft. , KL2 = 1 ft. , KL1 = 1 ft. , KLCP = 1 ft. and 6 inch ,

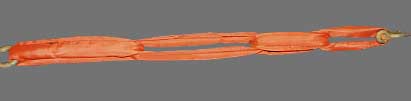

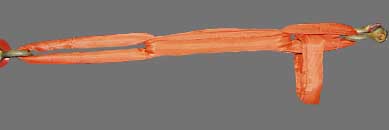

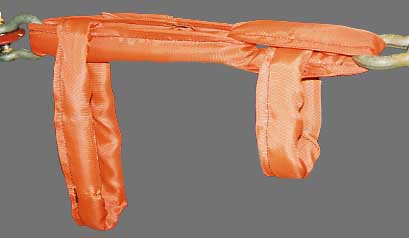

Above pictures are shown a 3 ft. KL1 orange K-Link Sling, with 2 = 1 foot links & 2 = 6 inch links.
The adjustments can be made in 1 foot ingrements and or 6 inch ingrements
when ordered in 1 foot and 6 inch ingrements for a total length
you wish to buy.
If you ever damage a link, you can replace that link with a shackle that has at
least the same load capacity as the K-Link Sling you are using.
Your K-Link Sling can then be shipped back to us to replace the damaged
link when you can give it for a day or two.
When any sling ever gets damaged, it is usually in one area of a sling.
So by using the K-Link Slings, since they are in a chain configuration, the damage
would be to one link and that link can be replaced by a new Link or by a shackle.

You can now see that your K-Link Slings would not have to be thrown away, like any
other sling would have to be. Just replace the damaged link. Imagine how much money
your company would be saving in the long run in labor and in replacement value compared in
using any other sling.
If you ever wanted your K-Link Sling longer, why, they can be sent back to us to add more links

to your sling, it's as simple as that.

No other sling in the world can be as versatile as the K-Link Slings.
The Value of the K-Link Slings are unbeatible !!

The K-Link Slings are only limited to your imagination, and if you don't have an
imagination, well then, Just call us. We have plenty to give to the world and its FREE !!




Single LINK
 When the single Link  is used by itself.

  ( W.L.L. ) Working Load Limits are in Pounds        Standard  length of each Link
      Color    Model   Verticle     Choke   Basket
Drab Olive   SLCP   3,600 Lbs.   2,880 Lbs.   7,200 Lbs.

      1 foot  or   6 inch

ORANGE or Black   SL1   6,600 Lbs.   5,280 Lbs.  13,200 Lbs.

      1 foot  or   6 inch

YELLOW or Black   SL2   8,400 Lbs.   6,720 Lbs.  16,800 Lbs.       1 foot  or  6 inch

RED   SL3  21,000 Lbs.  16,800 Lbs.  42,000 Lbs.       1 foot
BLUE   SL4  28,400 Lbs.  22,720 Lbs.  56,800 Lbs.       2 foot
RED & BLUE   SL5  43,100 Lbs.  34,480 Lbs.  86,200 Lbs.       2 foot




WARNING

Inspect Slings for Damage Before each use.
Read Safety Pamphlet on our slings before using.
Do Not expose to Temperatures above 180 degrees F.
and near Concentrated Acids.
Do Not use over Hot or sharp edges.
Do Not Use if Damaged in any way.
!!


A Vital Link in Safety!
Please
Read our Safety Pamphlet
.
