Replacing Damaged Links

When a K-Link sling is shipped back to us by any of our distributors to be repaired or any damaged links to be replaced, it is priority #1 that as soon as we receive the slings in, that they are to be checked thoroughly each and every link.

We will report to our distributor what it would cost for the complete repair before work will be done!

1. Stitching is to be checked and repaired.
2. Each link is checked 360 degrees in each axis.
3. Any cuts on a link, if not cut through both layers
   of the webbing, can be patched without having to replace the link.
4. Any links that are cut all the way through the second layer of
   webbing will be replaced.
5. Any load capacity tags that can not be clearly readable, we will
   add a new load tag to the sling.
6. A proof load test can be conducted on a sling if the customer wishes
   at an additional charge that would be quoted.

Priority #1 Policy: We will ship out repaired slings within 24 hours from the time we get the go-ahead to repair any slings. Most of the time, any slings received in the morning, will most likely go out the same day. They are put in front of any other slings being made.

You have chosen the most versatile sling in the world and we feel that it is our duty to provide you with full support to get your sling back to you quickly, so you will not loose any time on getting your job done.


Checking each link for any damage

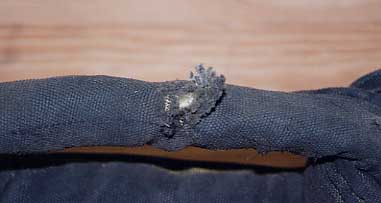

This link must be replaced because the webbing has been cut through the second layer and
you can see the internal white fiber strands. Also, since it was the first link and it has the load
tag sewn on it, we put a new load tag on the new replacement link.



This link also has to be replaced because the webbing has been cut through the second layer and
you can see the internal white fiber strands.



This link will not have to be replaced because the webbing was not cut through the second layer.
It would be optional if you would like to have a patch sewn on as an added protection as seen
in the below picture. This is not really needed, just optional.

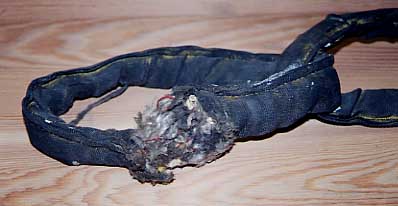

You can see that both layers of the webbing was cut through and you can see the internal white fiber
strands in this KL5 , 30,000 lbs. Working Load Limit K-Link sling. The cost is low to replace the
damaged links, than to buy a complete new 12 foot sling.




The stitching was spotted to be a bit frayed, so we re sewed this portion of this link.




The two damaged links were cut out and replaced with two brand new links.
You can see the brand new internal fibers.




New tubular webbing was cut to length and sewn around the new wounded links and then
prepared for shipping.

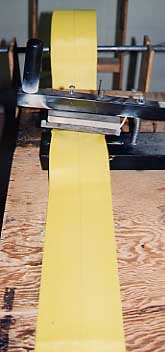

New tubular webbing is cut to length by using a hot knife to seal the ends.

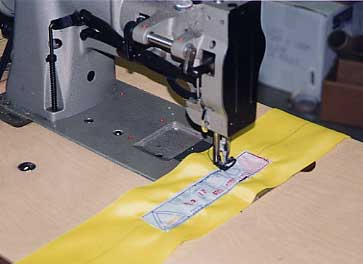

A new load tag is stamped with red ink with the capacity, model, and length of the sling.
Then sewn on a new length of tubular webbing.



The tubular webbing is then folded around the new internal fibers, causing the webbing
to become a double layer of protection for the internal fiber strands.

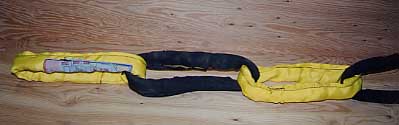

Here you can see that two new links were installed, to replace the damaged ones.
Also additional Links can be added to a K-Link sling, if at any time you wish to have
your sling longer



Proof load testing is taking the sling to twice it's working load limit.
Proof load testing is conducted at our in house facility and all our testing
equipment is sent out to a independent testing laboratory for calibration and
certification each year.

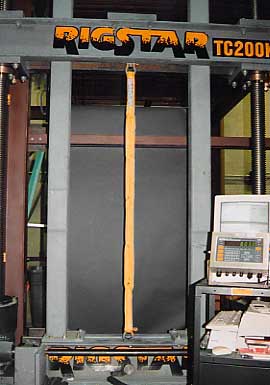

The above KL2 Yellow K-Link sling was Load tested to it's Working Load Limit (W.L.L.) Here showing just above 6,000 lbs. in a vertical pull. Next, The KL2 Yellow K-Link Sling was then Proof Loaded, which is twice it's Working Load Limit (W.L.L.) Shown above
at just over 12,000 lbs.



WARNING: You are never to use any K-Link slings above our listed working Load Limits that are listed on our Load tag or brochures for a specific model K-Link Sling!! Proof loading is only done within our company's in house testing facility.
If you go above, at any time, the working load limit stated for a specific model K-Link Sling
,

"THEN YOU ASSUME LIABILITY"

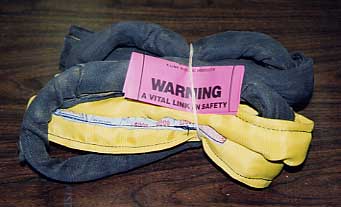

This KL2 model K-Link sling is banded together and a Warning pamphlet is shipped
with every sling that leaves our facility. Click here to read PAMPHLET

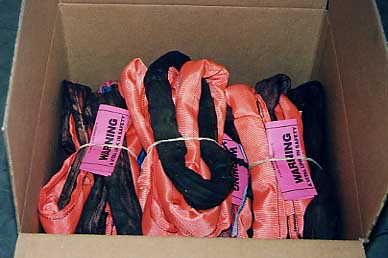

All repaired K-Link slings are boxed and ready for shipping.



Priority #1
We can ship out over night next day delivery so you can have your K-Link Slings
back to you the following day.
